Hex nut

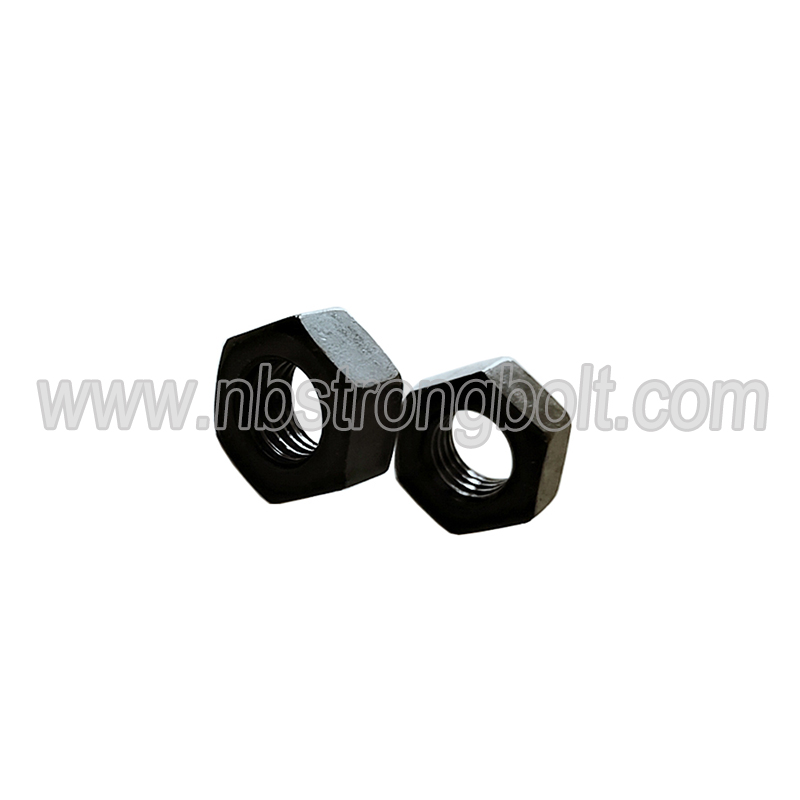

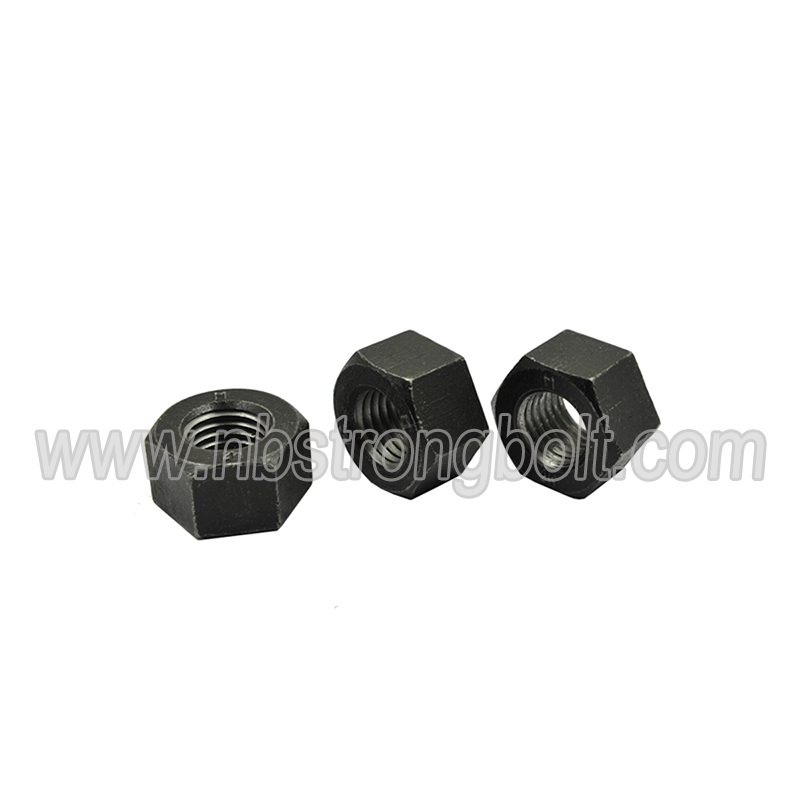

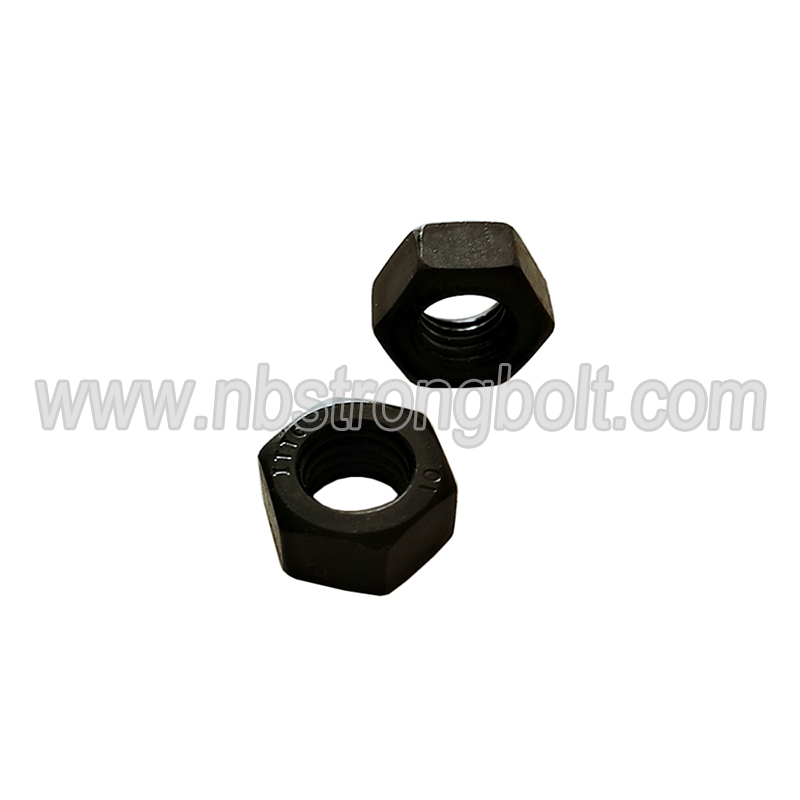

DIN934 Hex Nut Class 10 with Black

  • Product ID: Hex nut
  • Whatsapp: 008615267888847
  • Phone: 086 15267888847
  • Tel: +86-574-27717055
  • Email: sales@nbstrongbolt.com
  • Time: 2021-03-16 13:07
  • FEEDBACK



Model NO.
DIN934 Hex Nut Class 8 with Black
Process
Cold Forging,Hot Forging,Machining
Trademark
STRONG BOLT
Transport Package
Small Box & Bulk & Customizing
Specification
M3-M60
Origin
Ningbo, China
HS Code
7318160000













Item DIN934 Hex Nut Cl.8  Black
Class 4 & 5 & 6 & 8 & 10
Material Carbon Steel ,Alloy Steel,Stainless Steel and Copper
Surface Treatment Black, Zinc Plated(ZP), Yellow Zinc Plated (YZP)and Hot DIP Galvanizing(H. D. G. ), Dacromet, Nickel Plated, Brass Plated.
DIN934 Hex Nut Class 8 with Black M10
Size M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39
Pitch 0.8 1.0 1.25 1.5 1.75 2.0 2.0 2.5 2.5 2.5 3.0 3.0 3.5 3.5 4.0 4.0
e(min) 8.79 11.05 14.38 18.90 21.10 24.49 26.75 29.56 32.95 35.03 39.55 45.20 50.85 55.37 60.79 66.44
mw(min) 2.96 3.76 4.91 6.11 7.71 8.24 9.84 11.44 11.92 13.52 14.16 16.56 18.16 19.76 21.82 23.52
S(max) 8.00 10.00 13.00 17.00 19.00 22.00 24.00 27.00 30.00 32.00 36.00 41.00 46.00 50.00 55.00 60.00
S(min) 7.78 9.78 12.73 16.73 18.73 21.67 23.67 26.16 29.16 31.00 35.00 40.00 45.00 49.00 53.80 58.80
m(max) 4.00 5.00 6.50 8.00 10.00 11.00 13.00 15.00 16.00 18.00 19.00 22.00 24.00 26.00 29.00 31.00
m(min) 3.70 4.70 6.14 7.64 9.64 10.30 12.30 14.30 14.90 16.90 17.70 20.70 22.70 24.70 27.40 29.40

 • Carton size : The ordinary carton  (27*25*14.5CM) ,  or according to the demand of the customers.
• Packing :  plastic bags,Box, carton , then put on pallets, or according to the demand of the customers.

• We are a typical China supplier with more than 10 years experiences on fasteners.We are professionally exporting under the standards of DIN, JIS, GB, ANSI, and BS, as well as nonstandard fasteners. Now we have gained close cooperation with clients from Canada, Dubai, Europe, India,Chile,Peru and Russia, and won good comments from users. We always fulfilling customers' expectations by following the principle of "Providing services whenever and wherever our customers need it" to establish a steady beneficial relationship and wining customers' hearts. If you need more information, please contact our sales department.
